FMP-SMALL

FMP small capacity contactless controller

Rating excitation

The FMP is a contactless controller used for C&B motors and small capacity clutches/brakes. The contactless power transistor circuit used for clutch/break switching is very reliable and the discharge circuit uses a capacitor technique to improve the cut off characteristics, improving precision and high frequency control.
• With the adoption of a timing circuit, the interference between the clutch and the brake is eliminated and we obtain stable, efficient operation.
• The equipment is very compact due to control circuit integration and assembly of all parts (except the transformer) on printed circuit board.
• Simply connect the AC input, clutch/break and external signal and you are ready to operate.

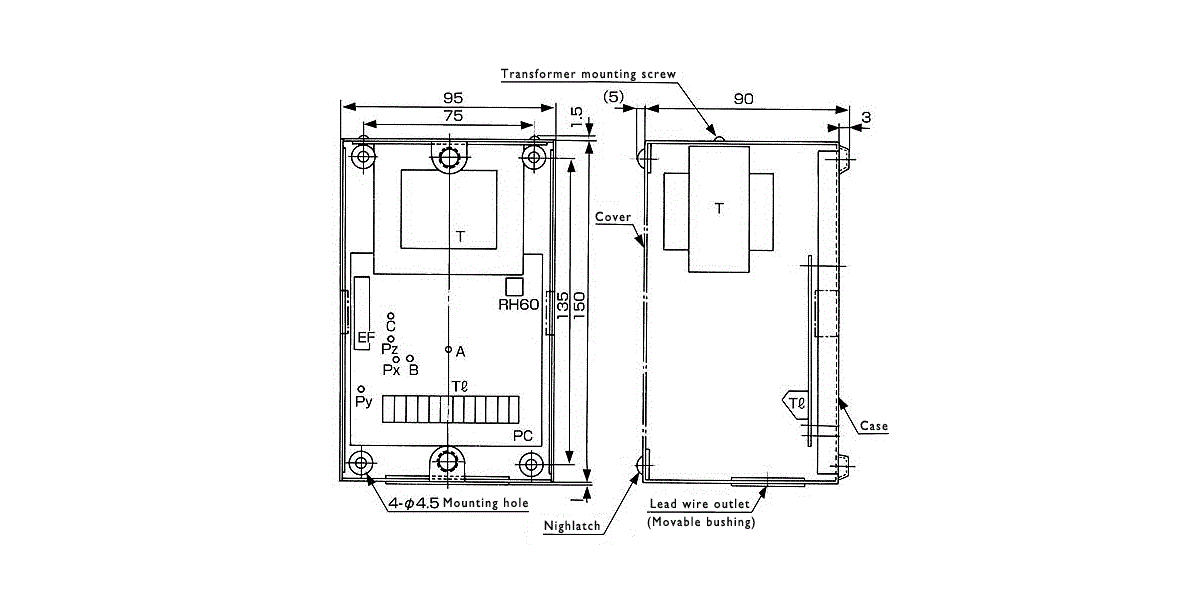

Dimensional outline drawing









Specifications

Type TMP-40D
Input voltage AC V 100/110 - 200/220
Fuse capacity A 1
Output voltage DC V 24
Capacity W 10
Rating Continuous
Adjustment(Volume variable) Time lag(ms) 0-45(20 at shipping)
Circuit direction IC contactless circuit
Structure Steel plate, wall mounting, protective type
Weight kg 1.5
Painting color Munsell 7.5BG6/1.5
Main applicable electromagnetic clutch/.brake C&B pack,MP4-5,BO/BB2-5

(Note)  Don't connect varistor for discharge circuit






External connection diagram



(Note)
1    PS terminal is for switching CL/MB through the external power source. See the operation manual for details.
2    Only a current of several milliamps can be used as the external source, so please use an appropriate input.




Memo

1    The lifespan is nearly permanent due to the adoption of a contactless mechanism.
2    By simply changing pins (A,B,C), it can be used either for 2 signals or a single signal.(Factory settings indicate 2 signals).
3    It achieves stable operation even under high frequency use due to a wide time lag adjustment range. For both clutches/brakes, the time lag adjustment is done by RH60, and by turning it clockwise, you can increase the time lag(It is set to be 20ms at the factory).
